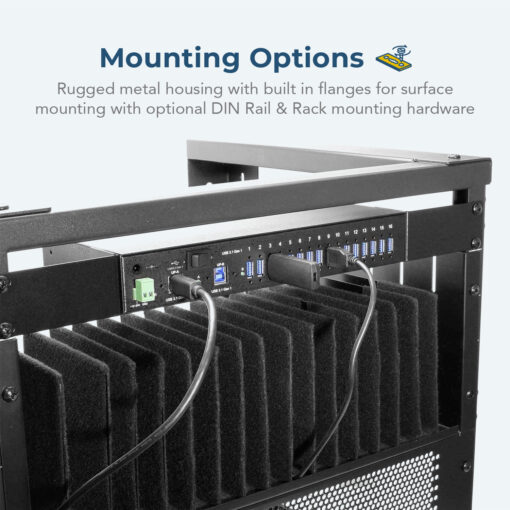

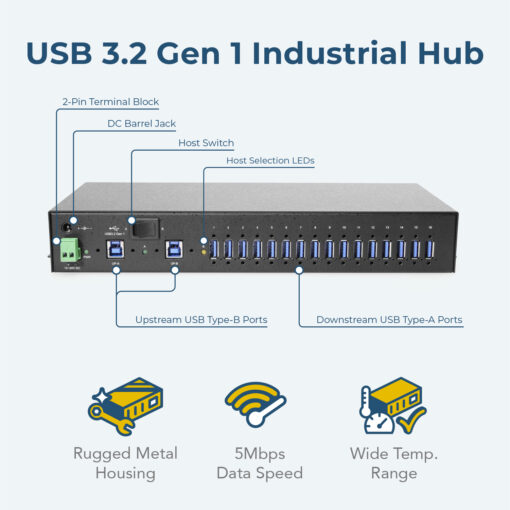

Model No. USB3-16U1 Industrial Grade | 12~24V DC Input | Surge Protection | Surface Mountable | DIN Rail | Rack Mount | 5 Gbps | Screw Lock Protect Your Equipment: The 16-port USB 3.2 Gen 1 features 350 Watts of surge protection and 15kV ESD protection to keep your connected peripherals safe from harm. Super Fast Speeds: This USB hub is 3.2 Gen 1 compliant, ensuring super-fast 5Gbps data transfer speeds. It supports super speed, high speed and full speed which enables it to be compatible with USB 2.0 / 1.1. Superior Build Quality: Housed in a rugged steel chassis with built in mountable flanges, the 16-port hub is perfect for installations in offices, labs, warehouses, heavy machinery, automation equipment, and other industrial applications. Upstream: 2 Selectable USB ports, Type B connector, Screw-lock type Downstream: 16 USB ports, Type A connectors, Screw-lock type Power Connector: 2-Pin Terminal Block, DC Barrel LED Indicators: 16 LEDs for each downstream port to indicate the current bus power states Mounting Options: Wall, Surface, and DIN Rail Supply Current: 0.9A USB bus power for each downstream port
