Belden 1694F Cable Reel

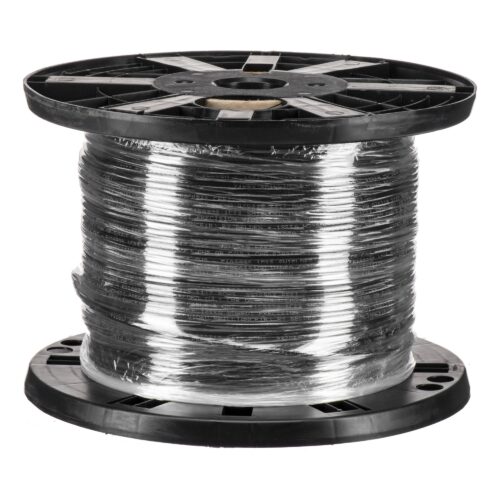

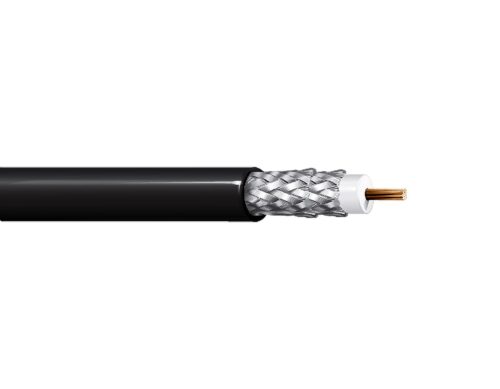

Belden 1694F Cable Reel (305m) 305m (1000ft) Reel of Belden 1694F 75 Ohm SDI Coax, RG-6, 19 AWG (7×27) Stranded Bare Copper Conductor, PE Insulation, Double 95% Tinned Copper Braid Shield, PVC Jacket, CM, Flexible 1694F Specifications Suitable Applications Digital Video, 6 Gb/s UHDTV, HD-SDI 1080p RG Type 6 Size Stranding Nom. Diameter Material 19 AWG 7×27 0.041 in BC – Bare Copper Material Nom. Insulation Diameter PE – Polyethylene (Foam) 0.180 in (4.57 mm) Layer Outer Shield Type Material Coverage 1 Braid Tinned Copper (TC) 95% 2 Braid Tinned Copper (TC) 95% Material Nom. Diameter PVC – Polyvinyl Chloride 0.276 in (7.01 mm) Overall Cable Diameter (Nominal) 0.276 in (7.01 mm) Frequency Min. Return Loss 5 – 850 MHz 20 dB 850 – 6000 MHz 15 dB Frequency Nom. Attenuation 1 MHz 0.24 dB/100ft 3.58 MHz 0.45 dB/100ft 5 MHz 0.54 dB/100ft 6 MHz 0.55 dB/100ft 7 MHz 0.62 dB/100ft 10 MHz 0.72 dB/100ft 12 MHz 0.83 dB/100ft 25 MHz 1.18 dB/100ft 55 MHz 1.76 dB/100ft 67.5 MHz 1.9 dB/100ft 71.5 MHz 2.0 dB/100ft 88.5 MHz 2.2 dB/100ft 100 MHz 2.4 dB/100ft 135 MHz 2.8 dB/100ft 143 MHz 2.9 dB/100ft 180 MHz 3.3 dB/100ft 270 MHz 4.0 dB/100ft 360 MHz 4.7 dB/100ft 540 MHz 5.9 dB/100ft 720 MHz 6.9 dB/100ft 750 MHz 7.1 dB/100ft 1000 MHz 8.4 dB/100ft 1500 MHz 10.6 dB/100ft 2000 MHz 12.5 dB/100ft 2250 MHz 13.4 dB/100ft 3000 MHz 15.9 dB/100ft 4500 MHz 20.6 dB/100ft 6000 MHz 28.7 dB/100ft Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedance Nom. Velocity of Prop. 8.5 Ohm/1000ft (28 Ohm/km) 1.7 Ohm/1000ft (5.6 Ohm/km) 17.0 pF/ft (55.8 pF/m) 75 Ohm 80% UL Voltage Rating 300 V (CM) UL Temperature Operating 60°C -35°C to 75°C Installation Min. 2.75 in Max. Pull Tension 90 lbs (41 kg) Bulk Cable Weight 50 lbs/1000ft Environmental Suitability Indoor (Not Riser or Plenum), Indoor Sustainability CA Prop 65 Flammability / Reaction to Fire UL 1685 – UL Loading NEC / UL Compliance CM CEC / C(UL) Compliance CM European Directive Compliance EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) APAC Compliance China RoHS II (GB/T 26572-2011)
