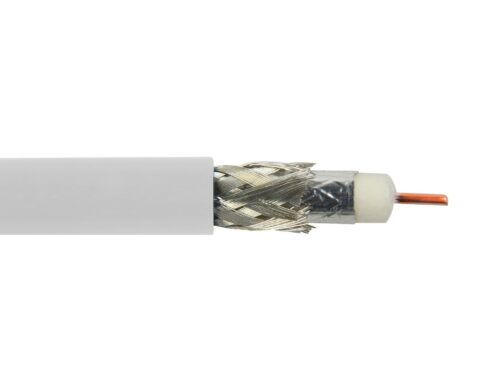

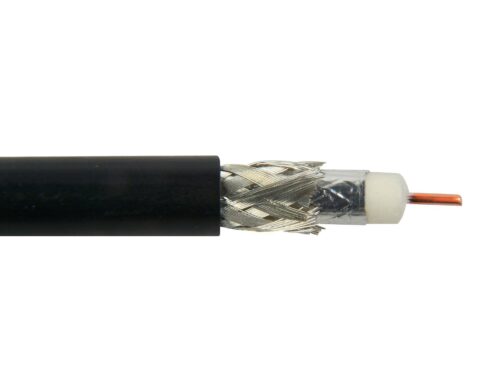

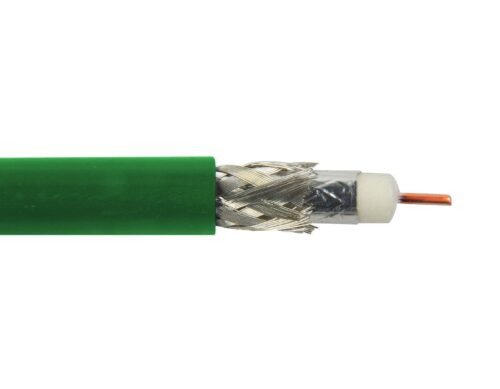

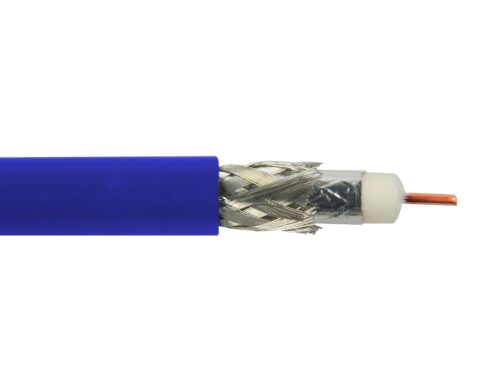

Belden 1694A Cable Reel
Belden 1694A Cable Reel – 305m 305m reel of Belden 1694A 75 Ohm SDI Coax, RG-6, 18 AWG Solid Bare Copper Conductor, PE Insulation, Foil 95% Tinned Copper Braid Shield, PVC Jacket, CMR RECOMMEND: KINGS 2065-10-9 BNC CRIMP CONNECTOR Cable Specifications: Physical Characteristics (Overall) # Coax 1 AWG 18 Stranding Solid Conductor Material BC – Bare Copper Dia. (mm) 1.016 Total Number of Conductors: 1 Insulation Material Gas-injected FHDPE – Foam High Density Polyethylene Dia. (mm) 4.572 Layer # 1 Outer Shield Trade Name Duofoil® Type Tape Outer Shield Material Aluminum Foil-Polyester Tape-Aluminum Foil Coverage (%) 100 Outer Jacket Material PVC – Polyvinyl Chloride Overall Nominal Diametre: 6.960 mm Mechanical Characteristics (Overall) Operating Temperature Range: -30°C To 75°C UL Temperature Rating: 75°C Bulk Cable Weight: 61.016 Kg/Km Max. Recommended Pulling Tension: 306.926 N Min. Bend Radius/Minor Axis: 69.850 mm Applicable Specifications and Agency Compliance (Overall) NEC/(UL) Specification: CMR CEC/C(UL) Specification: CMG EU Directive 2011/65/EU (ROHS II): Yes EU CE Mark: Yes EU Directive 2000/53/EC (ELV): Yes EU Directive 2002/95/EC (RoHS): Yes EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004 EU Directive 2002/96/EC (WEEE): Yes EU Directive 2003/11/EC (BFR): Yes CA Prop 65 (CJ for Wire & Cable): Yes MII Order #39 (China RoHS): Yes RG Type: 6/U UL Flame Test: UL1666 Vertical Shaft CSA Flame Test: FT4 Suitability – Indoor: Yes Plenum (Y/N): No Plenum Number: 1695A Electrical Characteristics (Overall) Other Electrical Characteristic 1: Impedance tested in accordance with ASTM D-4566 paragraph 43.2, option 2 using a 75 Ohm fixed bridge and termination. 75 /- 1.5 Ohms Other Electrical Characteristic 2: Return Loss tested in accordance with ASTM D-4566 paragraph 45.3, using a 75 Ohm fixed bridge and termination. Sweep Testing: 100% Sweep tested 5 MHz to 4.5 GHz. DATASHEET – PATCH CABLES
