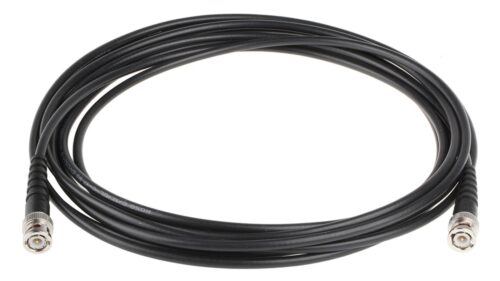

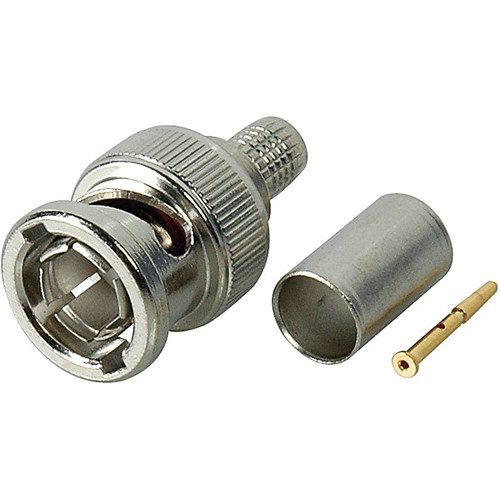

6G-SDI Patch Cable (Belden 1694A – Black) Industry standard Belden 1694A Cable (Black) terminated with Kings 2065-10-9 BNC Connectors. Suitable for use as SDI cable and for digital audio applications. Rated for up to 6G-SDI. Potential for 12G-SDI use over short distances with some equipment. Belden 1694A RG-6/U Type, 18 AWG solid .040″ bare copper conductor, gas-injected foam HDPE insulation, Duofoil tinned copper braid shield (95% coverage), PVC jacket. Datasheet Terminated with Winchester’s KINGS® brand 75 Ohm BNC series RF connectors (Part: 2065-10-9) with a reduced dielectric to achieve 75 ohm nominal impedance. They will mate with 50 Ohm BNC connectors with no damage. All the connectors in this group have captive centre contacts. Drawing Cable Specifications: Physical Characteristics (Overall) # Coax 1 AWG 18 Stranding Solid Conductor Material BC – Bare Copper Dia. (mm) 1.016 Total Number of Conductors: 1 Insulation Material Gas-injected FHDPE – Foam High Density Polyethylene Dia. (mm) 4.572 Layer # 1 Outer Shield Trade Name Duofoil® Type Tape Outer Shield Material Aluminum Foil-Polyester Tape-Aluminum Foil Coverage (%) 100 Outer Jacket Material PVC – Polyvinyl Chloride Overall Nominal Diametre: 6.960 mm Mechanical Characteristics (Overall) Operating Temperature Range: -30°C To 75°C UL Temperature Rating: 75°C Bulk Cable Weight: 61.016 Kg/Km Max. Recommended Pulling Tension: 306.926 N Min. Bend Radius/Minor Axis: 69.850 mm Applicable Specifications and Agency Compliance (Overall) NEC/(UL) Specification: CMR CEC/C(UL) Specification: CMG EU Directive 2011/65/EU (ROHS II): Yes EU CE Mark: Yes EU Directive 2000/53/EC (ELV): Yes EU Directive 2002/95/EC (RoHS): Yes EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004 EU Directive 2002/96/EC (WEEE): Yes EU Directive 2003/11/EC (BFR): Yes CA Prop 65 (CJ for Wire & Cable): Yes MII Order #39 (China RoHS): Yes RG Type: 6/U UL Flame Test: UL1666 Vertical Shaft CSA Flame Test: FT4 Suitability – Indoor: Yes Plenum (Y/N): No Plenum Number: 1695A Electrical Characteristics (Overall) Other Electrical Characteristic 1: Impedance tested in accordance with ASTM D-4566 paragraph 43.2, option 2 using a 75 Ohm fixed bridge and termination. 75 /- 1.5 Ohms Other Electrical Characteristic 2: Return Loss tested in accordance with ASTM D-4566 paragraph 45.3, using a 75 Ohm fixed bridge and termination. Sweep Testing: 100% Sweep tested 5 MHz to 4.5 GHz.
